Signature Line^®

pinnacle^®

Hard-Set, Transitional Pressure Sensitive Adhesive

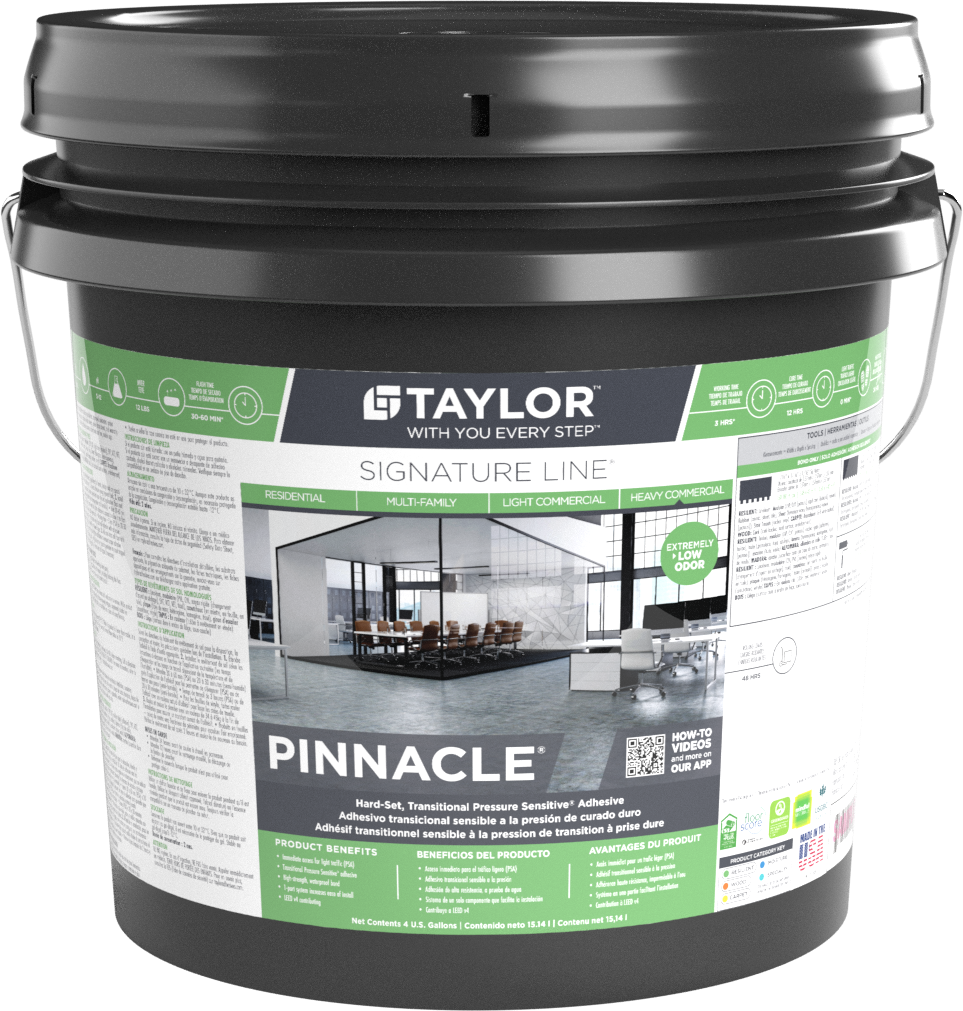

Pinnacle goes above and beyond by withstanding severe moisture and alkalinity. Offering the upfront benefits of a PSA, it quickly transitions; fully cross-linking into a hard-set to securely lock your flooring in place. With its aggressive, fast-grab design, Pinnacle handles the pressure of heavy rolling loads with ease.

Where to buy Product Documents

RH

99%
pH

5-12
MVER

12 lbs
Open Time

20-30 min
Flash Time

30-60 min
Working
Time

20-30 min;
3 hrs
Cure Time

12 hrs
Light
Traffic

0 min;
12 hrs
Heavy
Traffic

24 hrs
Heavy
Rolling
Loads

48 hrs
STC

No
IIC

No
Delta IIC

No

Why Use

Aggressive tack, fast-grab formula
Made with Meta-Sept™ anti-microbial agents that help maintain in-pail stability by protecting against fungal growth.
High-strength, elastomeric bond
Permanent, waterproof bond
ColorReady® technology
Easy application
Easy-to-trowel
Extreme heavy rolling loads
Immediate access for light traffic
Installs multiple flooring types
Solvent and isocyanate-free
LEED v4 contributing: CDPH v1.2
High-moisture tolerance(not a barrier)
Non-staining, easy-to-clean
Extremely low odor
Excellent plasticizer migration resistance
Competitive price point
Low VOCs

Certifications

Transparency

Documents

Product Highlight

Technical Data Sheet

Safety Data Sheet

Warranty Certificate

Approved Flooring Types

Flooring Type	Installation
carpet
Broadloom (6-ft vinyl-backed)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²

Flooring Type	Installation
resilient
Linoleum	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Modular (LVP)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Modular (LVT)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Modular (rigid core - dryback)	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Modular (SVT)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft²
Modular (VCT)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft²
Modular (VET)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft²
Modular (woven)	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Rubber (crumb)	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Rubber (sheet)	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Rubber (tile)	1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Sheet (fiberglass)	3/8" Short Nap Paint Roller Coverage 350 ft²
Sheet (heterogeneous)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Sheet (homogeneous)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Sheet (woven)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Stair Treads (rubber)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Stair Treads (vinyl)	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²

Flooring Type	Installation
wood
Cork underlayment	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
Cork-backed hard surface	1/16" x 1/32" x 1/32" U Notch Coverage 220-260 ft² 1/16" x 1/16" x 1/16" Sq Notch Coverage 150-180 ft²
